03. Understanding Database Internals

How Tables and Indexes Are Stored on Disk

Understanding how databases physically store and retrieve data is fundamental to backend engineering. The concepts of tables, indexes, pages, and I/O operations determine whether queries execute in milliseconds or minutes. These aren’t merely theoretical abstractions—they directly impact database performance and system design decisions.

Tables: Logical vs. Physical View

A table appears logically as rows and columns. Each row contains field values, and each column represents a data attribute. While document-oriented databases use different terminology, the underlying storage principles remain the same—at the lowest level, everything is bits and bytes.

Row ID

Most databases maintain an internal row identifier separate from user-defined columns. This row ID uniquely identifies each row’s physical location. In PostgreSQL, this is called a tuple ID. In MySQL with InnoDB, the primary key serves as this identifier. The row ID enables the database to locate specific rows efficiently without scanning entire tables.

Pages: The Unit of Storage

Databases don’t store or retrieve individual rows—they work with pages. A page is a fixed-size block of memory and disk space containing multiple rows. PostgreSQL uses 8 KB pages by default; MySQL InnoDB uses 16 KB pages. These sizes are configurable but typically remain at defaults.

Multiple rows fit within a single page. If each row occupies roughly 2.5 KB and pages are 8 KB, approximately three rows fit per page. A table with 1,001 rows would require around 334 pages (1,001 ÷ 3, rounded up).

Pages represent the atomic unit of disk I/O. When the database reads data, it retrieves entire pages, not individual rows. This has profound implications: requesting a single row from a page also loads all other rows on that page into memory. The database then filters out unwanted rows, but the I/O cost of fetching the entire page has already been incurred.

I/O Operations: The Database Currency

An I/O operation is a request to read data from disk. Minimizing I/O operations is the primary goal of database optimization—fewer I/Os mean faster queries.

Key characteristics of I/O:

• An I/O fetches one or more pages depending on disk configuration and query patterns
• An I/O cannot fetch a single row—it always retrieves entire pages
• When a page is fetched, all rows on that page are retrieved, regardless of whether they’re needed

This explains why SELECT * is expensive. Even if only one column is needed, fetching a page in a row-oriented database retrieves all columns for all rows on that page. The database must deserialize the entire page, filter unwanted data, and discard it—wasting CPU cycles on unnecessary deserialization.

Some I/O operations hit the operating system cache rather than physical disk. PostgreSQL relies heavily on OS caching, meaning not every I/O actually touches the disk. Cached pages are retrieved from memory, dramatically improving performance for frequently accessed data.

Heap: The Primary Data Structure

The heap is a collection of pages containing the table’s actual data. Everything about the table—all columns, all rows—resides in the heap. It’s called a “heap” because it’s an unordered collection; rows are stored in insertion order or wherever space is available, without inherent organization.

Querying the heap directly is expensive. Without guidance, the database must scan every page sequentially to find matching rows. For a table with 334 pages, finding a single row in the last page requires reading all 334 pages—an expensive full table scan.

Indexes: Efficient Navigation

An index is a separate data structure that helps locate data in the heap without scanning every page. Instead of searching through all pages, the index provides pointers directly to the pages containing desired data.

An index contains:

• A subset of the table’s columns (the indexed columns)
• Pointers to row IDs in the heap
• Metadata about which page contains each row

The most common index structure is the B-tree (balanced tree), which organizes data hierarchically for efficient searching. Searching a B-tree is logarithmic—O(log n)—compared to linear heap scans—O(n).

Indexes themselves are stored as pages and require I/O operations. An index doesn’t magically eliminate I/O; it reduces the number of I/O operations needed. Searching an index requires reading index pages, but these pages are typically much smaller and more focused than heap pages. Once the index identifies the target row’s location, a single I/O to the heap page retrieves it.

If an index is extremely large and doesn’t fit in memory, searching it becomes expensive. Smaller, well-designed indexes that fit in memory provide the best performance.

Here’s a graphical representation of the Heap and Index on EMP_ID:

Look at the Index data structure on the left:

• 10 (1, 0) means that the record with employee_id = 10 is located on page 0 at row ID 1.
• 10000 (1000, 333) means that the record with employee_id = 10000 is located on page 333 at row ID 1000.

Query Execution: With and Without Indexes

Without an Index

Consider the query:

SELECT * FROM employees WHERE employee_id = 10000;

Without an index on employee_id, the database performs a sequential scan on the Heap:

1. Read page 0: Contains employee IDs 10, 20, 30—no match
2. Read page 1: Contains employee IDs 40, 50, 60—no match
3. Continue through pages 2, 3, 4… up to page 333

If employee 10,000 is on the last page, the database reads all 334 pages. Some databases use parallel processing, dividing the heap among multiple threads to scan simultaneously, but sequential scans remain fundamentally expensive.

With an Index

With an index on employee_id:

1. Search the B-tree index for employee_id = 10000
2. The index returns: row ID 1000, page 333
3. Read page 333 from the heap
4. Extract row ID 1000 from the page
5. Return the result

Total I/O: one index page read plus one heap page read—dramatically fewer than 334 pages.

Even though the heap page contains three rows (assuming three rows per page), the database retrieves all of them but filters out the two unwanted rows. This unavoidable overhead is negligible compared to scanning hundreds of pages.

Clustered Indexes

A clustered index physically organizes the heap around an index key. Instead of the heap being unordered, rows are stored in index order. In MySQL InnoDB, the primary key is always a clustered index—the table is organized by primary key values.

Oracle calls this an Index-Organized Table (IOT). The heap and index merge into a single structure where data is stored in index order.

Clustered indexes have trade-offs. Range queries on the clustered key are extremely efficient because consecutive rows are physically adjacent on disk. However, inserts can be expensive if the index key is random (such as a UUID), because each insert may require reorganizing pages to maintain order. Writing to random locations across many pages—“scattershot writes”—degrades performance.

PostgreSQL doesn’t use clustered indexes by default. All PostgreSQL indexes are secondary indexes pointing to tuple IDs in the heap. This means updating any indexed column requires updating all indexes, not just the relevant one. Understanding these database-specific behaviors is critical when optimizing schemas.

Practical Implications

These storage fundamentals explain numerous database behaviors.

Why SELECT * is discouraged: Fetching entire pages and deserializing all columns wastes resources when only specific columns are needed. Column-oriented storage mitigates this by organizing pages by column rather than row, but row-oriented databases pay the full cost.

Why indexes speed up queries: They reduce I/O operations by providing direct pointers to relevant heap pages, avoiding sequential scans.

Why too many indexes slow down writes: Every insert, update, or delete must update all indexes. More indexes mean more I/O operations per write.

Why primary key choice matters: In MySQL InnoDB with clustered indexes, a random primary key like UUID causes scattered writes, fragmenting the heap and degrading performance. Sequential keys like auto-incrementing integers append to the end, minimizing page reorganization.

Why page size matters: Larger pages mean more rows per I/O but also more wasted data if only one row is needed. Smaller pages reduce waste but increase the number of I/Os for large scans.

Summary

Tables are stored in heaps—collections of fixed-size pages containing rows. I/O operations fetch entire pages, not individual rows, making page-level granularity fundamental to performance. Indexes are separate data structures, typically B-trees, that provide pointers into the heap, enabling efficient data location without full table scans.

Understanding these concepts explains why some queries are fast and others slow, why index design matters, and how schema decisions impact performance. These aren’t abstract details—they’re the mechanical reality underlying every database query. Optimizing databases requires thinking in terms of pages, I/O operations, and how data structures map to physical storage.

Row-based vs Column-based Databases

Databases store tables on disk using two fundamentally different approaches: row-oriented storage and column-oriented storage. Each has distinct advantages and trade-offs, making them suited for different workloads. Understanding these storage models is essential for choosing the right database and optimizing schema design.

Row-Oriented (Row Store) Databases

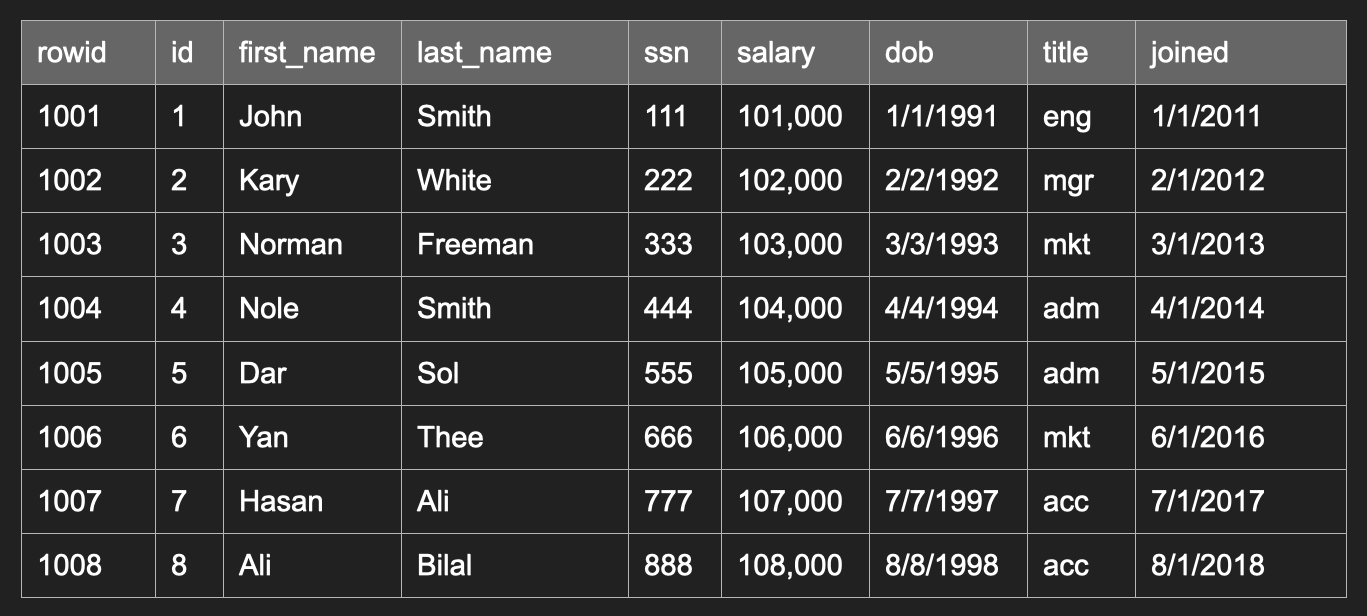

In row-oriented storage, entire rows are stored contiguously on disk. For a table with columns id, first_name, last_name, ssn, salary, dob, title, and joined, each row’s values are written sequentially: all fields for row 1, then all fields for row 2, and so on. Here’s an example of row-oriented database:

When the database performs an I/O operation to read data, it retrieves blocks (fixed-size chunks of disk storage). A single block might contain multiple rows—perhaps 3, 5, or 10 depending on row size and block size. Critically, when a block is read, all columns for all rows in that block are retrieved, whether needed or not.

Query Performance in Row Stores

Query 1: SELECT first_name FROM employees WHERE ssn = 666. Without an index, the database performs a sequential scan:

1. Read block 1: Contains rows with SSNs 222 and 111—no match
2. Read block 2: Contains rows with SSNs 444 and 333—no match
3. Read block 3: Contains row with SSN 666—match found

Once the matching row is in memory, retrieving additional columns is essentially free. The entire row was already loaded, so accessing first_name requires no additional I/O. This is a key advantage of row stores: once you find a row, accessing all its columns is cheap.

Query 2: SELECT * FROM employees WHERE id = 1. If id is sequential and can be mapped to row IDs, the database may jump directly to the correct block. Even without this optimization, once the matching row is found, returning all columns is efficient because they’re already in memory. Row stores excel at queries requesting many columns from specific rows.

Query 3: SELECT SUM(salary) FROM employees. This aggregate query requires scanning the entire table. For each block:

1. Read the block (containing multiple rows with all columns)
2. Extract only the salary column from each row
3. Discard all other columns

Row stores are inefficient for this pattern. Every block read pulls id, first_name, last_name, ssn, bod, title, and joined—all unused. If rows are large and salary values are small, most I/O bandwidth is wasted on irrelevant data.

Column-Oriented (Column Store) Databases

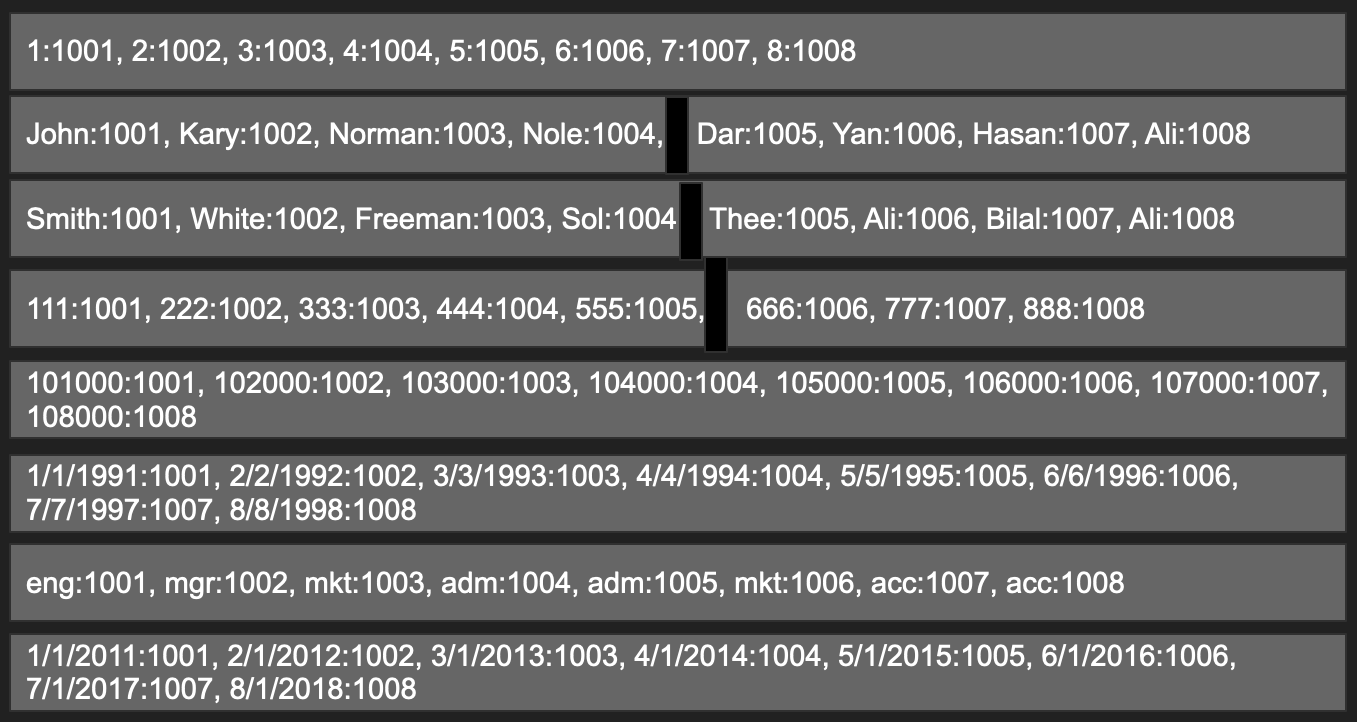

In column-oriented storage, values from the same column are stored contiguously. All id values are stored together, followed by all first_name values, then all last_name values, and so on. Each column forms its own logical structure on disk. Here’s an example of column-oriented database:

Critically, each column includes row IDs to maintain relationships. The first_name column stores pairs like (1001, "John"), (1002, "Melissa"), (1003, "Rick"). This row ID duplication across every column is essential but adds overhead.

Query Performance in Column Stores

Query 1: SELECT first_name FROM employees WHERE ssn = 666. The database reads only the ssn column structure:

1. Read ssn block 1: Contains values 555, 444, 333, 222, 111—no match
2. Read ssn block 2: Contains value 666 with row ID 1006—match found
3. Jump to first_name column, read the block containing row ID 1006
4. Return the first name

This requires three I/O operations but reads only relevant columns. The database doesn’t touch last_name, salary, or other columns. For large tables with many columns, this can be dramatically more efficient than row stores.

Query 2: SELECT * FROM employees WHERE id = 1. This is the worst-case scenario for column stores:

1. Read id column to find row ID 1001
2. Read first_name column to get row 1001’s value
3. Read last_name column to get row 1001’s value
4. Read ssn column to get row 1001’s value
5. Read salary column to get row 1001’s value
6. Read bod column to get row 1001’s value
7. Read title column to get row 1001’s value
8. Read joined column to get row 1001’s value

Eight separate I/O operations to reconstruct a single row. This thrashing across disk structures makes SELECT * queries catastrophically slow in column stores. If the table has dozens of columns, performance degrades proportionally.

Query 3: SELECT SUM(salary) FROM employees. Column stores excel here:

1. Read salary column blocks sequentially
2. Sum all values
3. Done

Only the salary column is touched. No I/O is wasted on other columns. If salary values fit compactly in memory, the entire operation might require reading just a handful of blocks compared to hundreds in a row store.

Compression in Column Stores

Column stores benefit from superior compression. When storing the same column’s values together, patterns emerge. If 1,000 employees have a salary of $100,000, the column can store 100000 once with a list of row IDs, rather than repeating the value 1,000 times. Similar names, dates, or categories compress well.

Row stores can’t compress as effectively because each row contains diverse data types with different values—no patterns to exploit. A row containing {42, "Alice", "Smith", 555-1234, 95000, "1990-05-15", "Engineer", "2020-01-10"} is essentially random data that resists compression.

Comparison Summary

Row-Oriented Databases

Advantages:

• Fast writes: Simple structure makes inserts and updates straightforward
• Efficient for transactions: OLTP (Online Transaction Processing) workloads benefit from reading/writing complete rows
• Multi-column queries: When queries request many columns, row stores excel because entire rows are retrieved in single I/Os
• Simple implementation: Straightforward storage model is easier to optimize

Disadvantages:

• Inefficient aggregations: Aggregate functions scanning single columns waste I/O on unused columns
• Poor compression: Mixed data types within rows resist compression
• Wasted bandwidth: Queries targeting specific columns still retrieve entire rows

Column-Oriented Databases

Advantages:

• Excellent for aggregations: Sum, average, count, and other aggregates on individual columns are extremely efficient
• Superior compression: Similar values stored together compress well, reducing storage and I/O
• Efficient analytical queries: OLAP (Online Analytical Processing) workloads that scan large datasets but use few columns benefit enormously
• Minimal I/O waste: Only requested columns are read

Disadvantages:

• Slow writes: Inserting or updating a row requires updating every column structure—overhead similar to maintaining multiple indexes
• Terrible for SELECT *: Reconstructing entire rows requires reading every column structure separately, causing severe disk thrashing
• Complex implementation: Managing row ID duplication and column structures adds complexity
• Poor multi-column queries: Queries touching many columns perform badly

Practical Applications

Row stores are optimal for:

• Transactional systems (e-commerce, banking, user authentication)
• Applications with frequent writes
• Queries retrieving complete records (user profiles, order details)
• Systems where rows have moderate column counts and mixed access patterns

Column stores are optimal for:

• Data warehouses and analytics platforms
• Read-heavy workloads with infrequent updates
• Aggregations and reports summarizing large datasets
• Tables where queries typically access only a few columns

Hybrid Approaches

Modern databases increasingly support both storage models. PostgreSQL, MySQL, and Oracle primarily use row storage but allow selecting column storage for specific tables through storage engines. A hybrid approach might:

• Store transactional tables (orders, users) in row format for fast writes
• Store analytical tables (historical sales, logs) in column format for efficient aggregation
• Avoid joins between row-stored and column-stored tables when possible, as these operations are complex and slow

Choosing storage format per table based on access patterns is powerful but requires careful analysis. A table with frequent analytical queries benefits from column storage, while a table with frequent full-row retrievals should use row storage.

Summary

Row-oriented storage excels when applications need fast access to complete records and perform frequent writes. Column-oriented storage excels when applications perform analytical queries scanning many rows but accessing few columns. Neither is universally superior—the choice depends entirely on workload characteristics. Understanding these trade-offs enables informed schema design and database selection for specific use cases.

Primary Key vs Secondary Key

The distinction between primary keys and secondary keys is subtle but critical for understanding database performance. These terms carry implicit information about how tables are physically organized on disk, affecting query optimization and write performance.

Table Storage: The Heap

Before distinguishing between key types, we must understand the default table storage structure: the heap. The heap is a disk area where table data resides, stored row by row without inherent ordering. Rows are inserted in the order they arrive. Inserting values 7, then 1, then 2 results in that exact physical order—7 at the top, 1 in the middle, 2 at the bottom. No sorting occurs by default.

This unordered structure makes searching inefficient. Without indexes, queries must scan the entire heap sequentially.

Primary Key: Clustered Index

In many modern databases, defining a primary key changes the physical nature of the table. The table ceases to be a heap and becomes a Clustered Index.

In a clustered architecture, the the data rows are stored in the leaf nodes of a B-tree, sorted by the primary key value.

• Write Overhead: To maintain this sorted order, the database cannot simply append rows. If you have IDs 1 and 8 and insert ID 2, the database must logically place 2 between them.
• Page Management: Databases use a Fill Factor—leaving empty space on pages—to allow for these insertions without physically shifting every row on disk. If a page becomes full, a “page split” occurs, which is a resource-intensive operation.

Oracle calls this structure an Index-Organized Table (IOT)—the table itself is organized as an index. Other databases call it a Clustered Index. The key insight is: the heap and the index are the same structure. There’s no separate index pointing to the heap; the heap is the index.

Advantages of Clustered Indexes

Range queries are extremely efficient. A query like SELECT * FROM table WHERE id BETWEEN 1 AND 9 requires minimal I/O because all matching rows are physically adjacent. The database reads a contiguous section of the heap, fetching all rows in a few I/O operations.

Sequential primary keys optimize writes and reads. Auto-incrementing integers work well because new rows append to the end, avoiding page reorganization. Memory caching benefits—recently accessed pages are likely to contain nearby rows needed for subsequent queries.

Disadvantages of Clustered Indexes

Random primary keys cause performance problems. UUIDs, which are random by nature, scatter inserts across the heap. Each insert may target a different page, causing excessive I/O and fragmenting the table. This “scattershot” pattern defeats caching and increases write latency.

Only one clustered index per table is possible. The table can only be organized one way. If queries require efficient access by multiple columns, only one can benefit from clustering.

Secondary Key: The Separate Map

A secondary index is a separate data structure (usually a B-tree) that contains a copy of the indexed column and a pointer to the rest of the data. The heap remains unordered—a “jumbled mess” where rows exist in insertion order or wherever space is available.

The way a secondary index “points” to the actual row depends on the database architecture:

1. In a Heap (e.g., PostgreSQL): The index stores a physical Row ID (RID) consisting of the file, page, and slot where the data lives (so it’s storing a physical address).
2. In a Clustered Table (e.g., MySQL/InnoDB): The secondary index stores the Primary Key value instead of a physical address.
   • Why? If the clustered index performs a page split and moves a row, a physical address would become invalid. By pointing to the Primary Key, the secondary index remains valid even if the row moves physically.

Querying with Secondary Indexes

Standard queries using a secondary index require two steps:

1. Index Lookup: Find the key in the B-tree to get the pointer.
2. Heap/Clustered Access (The “Bookmark Lookup”): Use the pointer to fetch the full row.

The Exception: If a query only asks for columns that are already stored inside the secondary index, the database performs an Index-Only Scan. This “Covering Index” bypasses the second step entirely, making it nearly as fast as a primary key lookup.

Advantages of Secondary Indexes

Multiple secondary indexes can coexist. Unlike clustered indexes, a table can have dozens of secondary indexes on different columns, supporting diverse query patterns.

Heap organization doesn’t affect write performance. Inserts append to the heap without requiring page reorganization. Only the index structures are updated, which is faster than maintaining clustered order.

Disadvantages of Secondary Indexes

All queries require two lookups. Even after finding matching rows in the index, the heap must be accessed to retrieve complete data. This adds I/O overhead compared to clustered indexes.

Range queries are less efficient. In a clustered index, rows between 1 and 100 are physically adjacent. With a secondary index, those rows might be scattered across the heap, requiring multiple non-contiguous I/O operations.

Database-Specific Behavior

MySQL (InnoDB) always uses a clustered index. By default, the primary key is clustered. If no primary key is defined, InnoDB creates a hidden auto-incrementing column to serve as the clustered key. All tables in MySQL are organized around a primary key, making sequential primary keys critical for performance.

PostgreSQL: Uses a heap-organized structure. All indexes, including the Primary Key, are technically “secondary” indexes pointing to tuple IDs in the heap.

• HOT Updates: To mitigate the cost of updating multiple indexes, Postgres uses “Heap Only Tuple” updates. If an update doesn’t change an indexed column and the new version fits on the same page, Postgres avoids updating the secondary indexes.

Oracle and SQL Server offer both options. Tables can be created as Index-Organized Tables (Oracle) or with clustered indexes (SQL Server), or they can remain heap-organized with only secondary indexes. This flexibility allows optimizing based on access patterns.

Terminology: Index-Organized Table vs Heap-Organized Table

Oracle’s terminology is clearer than alternatives. An “Index-Organized Table” explicitly describes what it is: a table structured as an index. The opposite—a heap-organized table—is a table stored as an unordered heap with separate indexes.

The term “clustered index” is less intuitive because it conflates the index and the table organization. “Primary key” is even more ambiguous, as it traditionally refers to uniqueness constraints rather than physical storage.

Practical Implications

For MySQL/InnoDB, primary key choice is critical. Using UUIDs as primary keys causes poor write performance due to random page access. Sequential integers or ULID (which includes a timestamp prefix) maintain locality and improve performance.

For PostgreSQL, primary keys are just unique constraints with indexes. Physical organization is separate from logical constraints. Clustering can be applied manually with the CLUSTER command, but it doesn’t persist across updates.

Range queries favor clustered indexes. If queries frequently scan ranges (WHERE created_at BETWEEN ... AND ...), clustering on that column dramatically improves performance. Secondary indexes require jumping between scattered heap locations.

Write-heavy workloads may prefer secondary indexes. Maintaining clustered order adds write overhead. If the table is updated frequently and query performance is acceptable with secondary indexes, avoiding clustering can improve throughput.

Summary

A primary key (clustered index) organizes the heap itself by key values, making range queries efficient but adding write overhead. A secondary key (secondary index) is a separate structure pointing to an unordered heap, allowing multiple indexes but requiring two-step lookups. Understanding this distinction explains performance characteristics across different databases and informs schema design decisions like primary key selection and index strategy.

The Architecture of Data Retrieval: A Comprehensive Examination of Database Indexing and Storage Structures (Clarification of Primary and Secondary Keys by Gemini 3 with deep research option https://gemini.google.com/app/98ee2576127fd892?hl=it)

The evolution of database management systems has been fundamentally driven by the widening performance gap between central processing unit (CPU) speeds and the latency inherent in secondary storage media. As datasets expanded from megabytes to petabytes, the necessity for efficient data retrieval mechanisms became the primary focus of database engineering. In a relational database, the most basic form of data access is the full table scan, a process in which the storage engine sequentially inspects every record in a table to identify those that satisfy a query predicate. While this approach is functionally complete, its time complexity of $O(n)$ renders it impractical for modern applications requiring sub-second response times. To resolve this, database engines utilize indexes—auxiliary data structures that provide an alternative, optimized path to the data.

The complexity of indexing stems not only from the mathematical properties of the structures used, such as B-trees and hash tables, but also from the diverse ways these structures are integrated into the physical storage layer of the database. Understanding the distinction between logical keys and physical indexes, the mechanics of clustered versus non-clustered organization, and the trade-offs between different storage engines like MySQL’s InnoDB and PostgreSQL’s heap storage is essential for optimizing database performance. This report provides a systematic analysis of these concepts, clarifying terminology that is often used synonymously and exploring the deep architectural implications of indexing decisions.

Foundations of Data Organization: Keys and Indexes

A common source of confusion in database theory is the overlap between the logical definition of data and its physical representation. It is necessary to distinguish between “keys,” which are constraints defined in the relational model, and “indexes,” which are the physical structures implemented to satisfy those constraints and optimize performance.

The Logical Layer: Primary and Secondary Keys

At the logical level, a key is a column or a set of columns used to identify rows within a table. The primary key is the unique identifier for a row, and by definition, it must contain unique, non-null values. In most relational models, the primary key is chosen based on its stability and uniqueness, such as a customer ID or a transaction number. A secondary key, often referred to in the context of searching, is any other attribute used as a search criterion that is not the primary key. For example, in a database of users, the UserID might be the primary key, while the Email or PhoneNumber serves as a secondary key. Unlike the primary key, a secondary key does not inherently guarantee uniqueness unless a specific unique constraint is applied.

The Physical Layer: Primary and Secondary Indexes

An index is the physical implementation of an access path. A primary index is typically the index created on the primary key of a table. In many modern database engines, the primary index is synonymous with the clustered index, as it determines the physical order of the data on the disk. A secondary index is any additional index created on non-primary key columns to facilitate faster searching. While the primary index is usually unique and mandatory for efficient table organization, secondary indexes are optional and created based on the specific query patterns of the application.

Term	Domain	Definition	Uniqueness
Primary Key	Logical	A mandatory unique identifier for a record.	Required
Secondary Key	Logical	A non-primary attribute used for searching or filtering.	Optional
Primary Index	Physical	The main access path, often integrated with the data itself.	Required
Secondary Index	Physical	An auxiliary structure pointing to the main table data.	Optional

Storage Architectures: Heap-Organizvd vs. Index-Organized Tables

The fundamental decision in database design is how the actual data rows are stored on the disk. This physical organization dictates how every index thereafter will interact with the data. There are two dominant paradigms in the industry: heap-organized tables and index-organized tables (IOTs).

Heap-Organized Tables: The Unordered Collection

In a heap-organized table, data is stored in an unordered fashion. When a new row is inserted, the database engine places it in the first available space within a data block.bThis structure is analogous to a pile of documents where new pages are added wherever they fit, regardless of their content. Heap tables are highly efficient for write-heavy workloads because the engine does not need to maintain a specific sorted order during insertion.

Every row in a heap table is assigned a unique physical address, known as a Row Identifier (RowID) or Tuple Identifier (TID). This RowID is essentially a pointer that specifies the file, the block, and the exact slot within that block where the row is located. In a heap table, all indexes—including the one for the primary key—are considered secondary because they all function by storing a key value and a corresponding RowID pointer. PostgreSQL is the most prominent modern example of a database that utilizes heap storage as its primary organization method.

Index-Organized Tables: The Clustered Architecture

An index-organized table, also known as a clustered table, integrates the data rows directly into the leaf nodes of a B-tree index. In this model, the table is the index. The physical order of the rows on the disk is determined by the value of the primary key. When a developer creates a clustered index on a table, they are essentially telling the database engine to sort the entire table based on the indexed column.

The primary advantage of an IOT is the elimination of the “pointer hop” required in heap tables. When a query searches for a record using the primary key, the B-tree traversal leads directly to the data row itself, rather than to a pointer that necessitates a second I/O operation to fetch the row from a heap. This architecture is standard in MySQL’s InnoDB storage engine and is an optional but frequently used feature in Microsoft SQL Server.

Aspect	Heap-Organized Table	Index-Organized Table (Clustered)
Physical Order	No inherent order; records placed where space exists.	Sorted physically based on the primary key.
Insert Performance	High; minimal overhead to find insertion point.	Lower; requires maintaining sorted order.
Read Performance	Requires index lookup plus a heap fetch.	Direct access; data is in the index leaf.
Storage Engine Example	PostgreSQL, Oracle (Heap), SQL Server (Heap).	MySQL (InnoDB), SQL Server (Clustered).
Secondary Pointers	Uses direct physical addresses (RowID/TID).	Uses logical primary key values.

The Mechanics of the B+ Tree Structure

The efficiency of both clustered and secondary indexes is derived from the B+ tree, a self-balancing tree data structure that maintains sorted data and allows for searches, sequential access, and modifications in logarithmic time.

Internal Nodes and Navigational Logic

The B+ tree consists of a hierarchy of pages. The root node and internal (or branch) nodes serve as navigational aids. These nodes do not contain actual row data; instead, they store key values and pointers to the next level of the tree. The search process begins at the root, comparing the target value to the keys in the node to determine which child pointer to follow. This process repeats until the traversal reaches a leaf node at the bottom level of the tree.

Leaf Nodes and Data Storage

The leaf nodes are where the actual data (in a clustered index) or the row pointers (in a secondary index) reside. A defining characteristic of the B+ tree is that all leaf nodes are linked together via sibling pointers, typically forming a doubly-linked list. This linkage is what makes B+ trees exceptionally efficient for range queries. Once the engine locates the starting point of a range in a leaf node, it can simply traverse the horizontal links to retrieve all subsequent records in the range without needing to traverse the tree hierarchy again for each record.

Fan-out and Tree Height

The efficiency of a B+ tree is largely dependent on its “fan-out,” which is the number of child pointers each node can contain. In a modern database, a single 16KB page can often hold hundreds of pointers. For instance, if each node has a fan-out of 100, a three-level tree can index up to $100^3$ (one million) pages. This high fan-out ensures that the tree remains “shallow,” meaning that even in a table with billions of rows, a specific record can usually be found with only three or four disk reads.

Clustered Indexes: The Physical Heart of a Table

Because a clustered index dictates the physical storage order of data on the disk, a table can have exactly one clustered index. If a table does not have a clustered index, it is referred to as a “heap”. The choice of the clustered index key is perhaps the most critical architectural decision in database design, as it impacts not only the storage of the table itself but also the performance of every secondary index created on that table.

Hierarchy of Clustered Index Creation in InnoDB

In MySQL’s InnoDB engine, the selection of the clustered index follows a strict hierarchy. First, if a PRIMARY KEY is defined, InnoDB uses it as the clustered index. If no primary key is defined, the engine searches for the first UNIQUE index where all columns are NOT NULL. If neither exists, InnoDB generates a hidden, internal clustered index named GEN_CLUST_INDEX based on a synthetic 6-byte row ID that increases monotonically. This ensure that every table in InnoDB has a clustered structure, even if the user does not explicitly define one.

Characteristics of an Effective Clustering Key

An optimal clustered index key should be narrow, static, and ever-increasing.

The “narrowness” refers to the byte size of the key. Because the clustered key is duplicated in every secondary index to serve as a logical pointer, a wide clustering key (such as a 36-character UUID string) will significantly increase the storage requirements and memory pressure for all secondary indexes.

A “static” key is one that rarely or never changes. If a clustered key value is updated, the database must physically move the row to a different page to maintain the sorted order, which is a resource-intensive operation that can trigger page splits and fragmentation.

An “ever-increasing” key, such as an auto-incrementing integer or a timestamp, ensures that new inserts always occur at the end of the table. This append-only behavior minimizes the need for the database to reorganize existing pages, thereby reducing the overhead associated with write operations.

Secondary Indexes and the Indirection Mechanism

Secondary indexes provide alternative search paths for queries that do not filter by the primary key. For example, in a table clustered by CustomerID, a query searching for a customer by LastName would require a full table scan unless a secondary index on the LastName column exists.

The Pointer Paradox: Physical vs. Logical Locators

The most significant difference between storage engines lies in how a secondary index “finds” the data in the main table.

In heap-based systems like PostgreSQL, the secondary index stores a direct physical pointer (the TID) to the row in the heap. This allows for extremely fast retrieval (one lookup in the index followed by one direct fetch from the heap). However, this speed comes at a cost during row movement. If a row is updated and must move to a new block, the database must update every single secondary index on that table to point to the new physical address.

In clustered systems like InnoDB, the secondary index stores the primary key value of the row rather than its physical address. This introduces a layer of indirection: when a query uses a secondary index, the engine first finds the primary key in the secondary index B-tree, and then performs a second B-tree traversal in the clustered index to find the actual data. This is often called a “bookmark lookup” or “key lookup.” While this is theoretically slower (two lookups instead of one), it makes row movement “free” for secondary indexes; if a row moves within the clustered index, its primary key remains the same, so the secondary indexes do not need to be updated.

The Covering Index Optimization

A covering index is a secondary index that contains all the columns required by a specific query.8 If a query can be satisfied entirely using the data found in the leaf nodes of the secondary index, the database engine can skip the step of looking up the row in the main table (either via RowID or Primary Key). This is a massive performance optimization because it transforms a potentially expensive random I/O operation into a streamlined index scan.

Write Performance and the Cost of Maintenance

While indexes dramatically improve read performance, they impose a permanent tax on write operations. Every time a row is inserted, updated, or deleted, the database engine must also update every index associated with that table. This results in “write amplification,” where a single logical change to a record translates into multiple physical write operations on the disk.

Page Splits and Fragmentation

In a B+ tree, data must be maintained in a specific sorted order. If a new record needs to be inserted into a page that is already full, the engine must perform a “page split”.34 This involves allocating a new page and moving approximately half of the records from the full page to the new one to create space for the new insert.

Page splits are computationally expensive and lead to fragmentation. In “nasty” page splits—those caused by inserting rows in a random order—the physical order of pages on the disk becomes disconnected from their logical order in the B-tree. This fragmentation forces the disk heads of traditional spinning drives to jump back and forth during a sequential scan, drastically reducing throughput.

Fill Factor as a Mitigative Strategy

To reduce the frequency of page splits, database administrators use a setting known as the “Fill Factor”. This setting determines how much empty space is left on each page when an index is created or rebuilt. A Fill Factor of 80% tells the database to leave 20% of each page empty to accommodate future inserts. While this increases the total disk space used by the database, it provides a buffer that can significantly improve write performance and reduce fragmentation in environments with high insertion rates.

Performance Analysis: Index Seeks vs. Index Scans

The database query optimizer is responsible for deciding how to use available indexes to satisfy a query at the lowest possible cost. The optimizer generally chooses between two primary access methods: seeks and scans.

Index Seeks

An index seek occurs when the optimizer uses the B-tree structure to jump directly to a specific value or the beginning of a range. This is the most efficient way to access data, as it minimizes the number of pages that must be read from the disk. For a seek to be possible, the query predicate must align with the leftmost columns of the index—a principle known as the “leftmost rule” in composite indexes. For example, an index on (LastName, FirstName) can support a seek for LastName='Smith', but it cannot support a seek for FirstName='John' because the tree is sorted primarily by the last name.

Index Scans

An index scan occurs when the database reads every leaf page in the index.22 While a scan is less efficient than a seek, it is often still faster than a full table scan because the index is a “skinny” version of the table, containing only a subset of columns and thus occupying fewer pages.22 The optimizer might choose an index scan if a query can be “covered” by the index but the search predicate does not allow for a direct seek.37

The Threshold of Selectivity

An index is only useful if it narrows down the search to a small percentage of the table. This is known as “selectivity”.2 If a query filters by a column with low selectivity—such as a Status column where 90% of the rows are ‘Active’—the optimizer may determine that it is cheaper to perform a full table scan than to use an index and incur the cost of millions of individual row lookups.2

Architectural Deep Dive: MySQL InnoDB vs. PostgreSQL

The trade-offs between clustered and heap-based architectures are best illustrated by comparing the two most popular open-source databases: MySQL (using the InnoDB engine) and PostgreSQL.

InnoDB: Optimized for Primary Key Access

InnoDB’s philosophy is that the primary key is the “soul” of the table. By forcing every table to be a clustered index, InnoDB ensures that queries using the primary key are as fast as possible.7 This makes InnoDB an excellent choice for applications that frequently retrieve single records by ID or perform range scans on time-series data where the primary key is a timestamp.15 However, this architecture requires careful management of secondary indexes to avoid the performance penalties associated with wide primary keys and double lookups.30

PostgreSQL: Optimized for Flexibility and Concurrent Writes

PostgreSQL’s heap-based approach treats all indexes as equal.19 Since no single column is “special” at the storage layer, PostgreSQL can be more flexible in handling diverse query patterns.19 Its use of physical TIDs in secondary indexes makes read operations very fast, but its MVCC implementation (which stores multiple versions of a row directly in the heap) can lead to table “bloat” if not managed by an aggressive vacuuming process.19 PostgreSQL is often favored for complex analytical workloads and systems where write concurrency is the primary bottleneck.43

Side-by-Side Indexing Capabilities

Feature	MySQL (InnoDB)	PostgreSQL
B-tree Support	Default; Clustered	Default; Secondary
Hash Index	Internal (Adaptive)	Explicitly supported
GIN/GiST	Not supported	Supported (JSON, Geo, Full-text)
BRIN	Not supported	Supported (Large sequential tables)
Clustering	Automatic/Persistent	Manual (CLUSTER command; non-persistent)
Covering Indexes	Supported	Supported

Specialized Index Structures for Non-Traditional Workloads

As databases evolved to handle unstructured and specialized data, new index structures were developed to address the limitations of the B-tree.

Hash Indexes: The Equality Specialists

Hash indexes are designed for one thing: high-speed equality comparisons.36 By applying a hash function to the search key, the database can determine the exact location of the record in $O(1)$ time.2 However, hash indexes cannot be used for range queries, sorting, or partial matches.2 In MySQL, hash indexes are primarily available for tables using the MEMORY engine, while PostgreSQL provides them as a general-purpose index type.45

GIN and GiST: The Composite Data Solution

In PostgreSQL, GIN (Generalized Inverted Index) and GiST (Generalized Search Tree) indexes allow for efficient searching of non-scalar data.44 GIN is particularly effective for full-text search and arrays, as it creates an entry for every individual element (or word) and points back to the rows containing it.45 GiST provides a framework for indexing complex spatial data, enabling queries that find records within a certain geometric boundary.45

BRIN: Scaling to the Terabyte Level

Block Range INdexes (BRIN) are a PostgreSQL innovation for extremely large tables that are physically ordered by a specific column, such as a log table ordered by created_at.44 Instead of indexing every row, a BRIN index stores only the minimum and maximum values for a range of blocks.45 This allows the engine to skip entire sections of the table that cannot possibly contain the target value, providing a “good enough” search optimization with virtually zero storage overhead.45

Conclusion: Strategic Decision-Making in Database Indexing

The investigation into database indexing reveals that there is no universal “best” approach; rather, the optimal strategy depends on the specific requirements of the application. The choice between a clustered and a heap-based architecture is the first and most significant decision. Clustered tables offer unparalleled performance for primary key lookups and range scans but require a carefully chosen, narrow primary key to prevent bloating secondary indexes. Heap-based tables provide greater flexibility and faster concurrent writes but may require more frequent maintenance to manage bloat and fragmentation.

Furthermore, the relationship between primary and secondary indexes highlights the trade-off between read speed and write maintenance. While adding indexes can solve immediate performance bottlenecks for specific queries, over-indexing can cripple a system’s ability to handle high-volume write operations. Developers must strike a balance by identifying the most critical search paths and using techniques like covering indexes to minimize I/O.

In conclusion, understanding the underlying B+ tree mechanics, the nature of row locators, and the behavior of the query optimizer allows for the design of database systems that are not only fast today but also scalable and maintainable as the data grows. Indexing is not a mere configuration step; it is the fundamental bridge between the logical model of the data and its physical reality on the disk.
