03. Internet Protocol (IP)

The IP Building Blocks

The Internet Protocol operates at layer three of the OSI model, and understanding its fundamental components is essential for comprehending how packets traverse networks. When discussing packets, it’s important to recognize what this term means: a layer three construct consisting of data with source and destination IP addresses, plus additional headers. To routers, the contents—whether they contain TCP segments with ports, application data, or anything else—are irrelevant. A packet is simply an IP-addressed unit to be forwarded toward its destination.

IP Address Structure and Assignment

An IP address is a layer three property that can be assigned either dynamically (through protocols like DHCP) or statically configured on a machine. While the mechanisms of dynamic assignment fall more into network engineering territory—troubleshooting DHCP servers and address allocation—the practical reality for most software engineers is straightforward: as long as a host has a valid IP address, it can communicate on the network.

An IPv4 address consists of four bytes (32 bits) divided into two logical portions: the network portion and the host portion. The notation uses dotted-decimal format (A.B.C.D/X) where each letter represents one byte, followed by a slash and a number indicating how many bits constitute the network portion. For example, 192.168.254.0/24 means the first 24 bits (three bytes: 192.168.254) represent the network, while the remaining 8 bits (the final octet: 0) represent the host.

This division determines network capacity: a /24 network supports up to 2^24 possible distinct networks and it can accommodate up to 255 hosts (2^8 - 1, accounting for reserved addresses). The choice of network size—whether to use /24, /16, /8, or other prefix lengths—is typically a network administrator’s decision based on organizational requirements. How many networks does an organization need? How many hosts per network? These questions guide subnet design, and while software engineers should understand these concepts to reason about packet delivery, the actual network configuration is best left to network engineers for whom this is core expertise.

Subnets and Subnet Masks

A subnet is a logical division of an IP network. It’s defined by a network prefix, which indicates how many bits of an IP address are used for the network portion. For example, the subnet 192.168.254.0/24 uses a /24 prefix, meaning the first 24 bits of the address identify the network. The corresponding subnet mask is 255.255.255.0, which in binary looks like 11111111.11111111.11111111.00000000. Here, the first three octets are for the network, and the last octet is for host addresses within that subnet.

The subnet mask answers a critical question: Is the destination IP address in my subnet or not? This question determines routing behavior. If the destination is within the same subnet, the packet can be delivered directly using MAC addresses at layer two. If the destination is in a different subnet, the packet must be forwarded to a gateway that knows how to route it.

To determine subnet membership, a host performs a bitwise AND operation between the subnet mask and both its own IP address and the destination IP address. If the results match, both addresses belong to the same subnet. If they differ, the destination is on a different network.

Subnet Mask Calculation Example

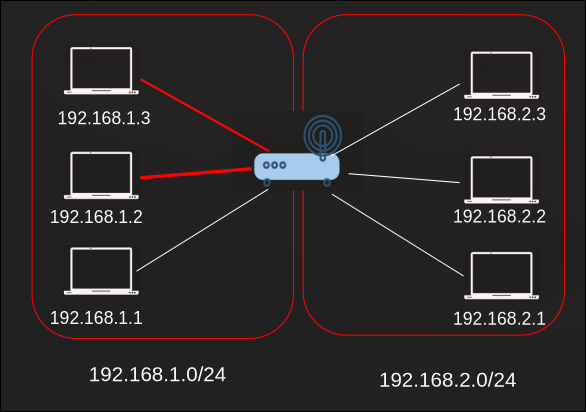

Consider a host at 192.168.1.3 wanting to communicate with 192.168.1.2, both using a /24 subnet mask (255.255.255.0).

The AND operation works as follows: any bit ANDed with 1 remains unchanged, while any bit ANDed with 0 becomes 0. Applying 255.255.255.0 to 192.168.1.3:

• 192 AND 255 = 192
• 168 AND 255 = 168
• 1 AND 255 = 1
• 3 AND 0 = 0

Result: 192.168.1.0

Applying the same mask to 192.168.1.2:

• 192 AND 255 = 192
• 168 AND 255 = 168
• 1 AND 255 = 1
• 2 AND 0 = 0

Result: 192.168.1.0

The network portions match, confirming both hosts are in the same subnet. The host can deliver the packet directly without involving a router. In this scenario, even if a router exists between the hosts, it acts merely as a layer two switch, examining MAC addresses to forward frames without processing IP headers. The router needs only the data link layer to complete the delivery.

Cross-Subnet Communication

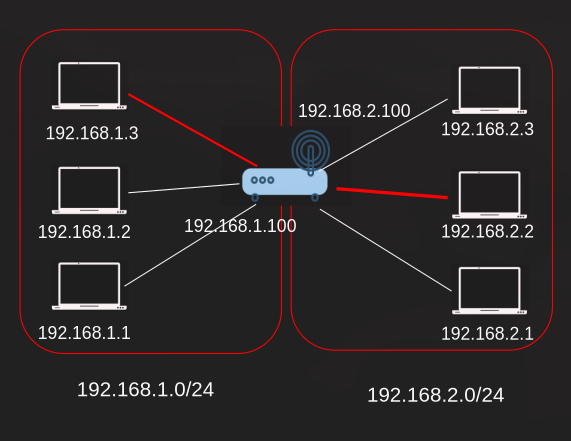

Now consider 192.168.1.3 attempting to communicate with 192.168.2.2. Applying the /24 mask:

• 192.168.1.3 becomes 192.168.1.0
• 192.168.2.2 becomes 192.168.2.0

The network portions differ, indicating different subnets. The source host cannot deliver the packet directly—it doesn’t know how to reach the remote network. Instead, it forwards the packet to its default gateway.

Default Gateway

Most networks consist of hosts and a default gateway. The gateway is simply another device with multiple network interfaces, each assigned to a different network. A basic gateway might have two interfaces—one in the local subnet and one in an adjacent subnet—while border routers serving as gateways can have hundreds of interfaces connecting numerous networks.

Every host must know three pieces of information to function on a network:

1. Its own IP address
2. Its subnet mask
3. Its default gateway IP address

Without these three components, the host cannot communicate beyond its immediate subnet.

When a host determines that a destination is in a different subnet, it sends the packet to the default gateway. Critically, the IP packet’s destination address remains the ultimate target, but the Ethernet frame’s destination MAC address is the gateway’s MAC address. This is where ARP (Address Resolution Protocol) poisoning attacks occur—if a malicious device masquerades as the gateway by responding to ARP requests with its own MAC address, it can intercept all traffic destined for external networks.

The gateway receives the packet, examines the destination IP, and either forwards it to another gateway or delivers it directly if the destination is on one of the gateway’s other connected networks. A router effectively “lives multiple lives,” possessing one IP address in each connected network. For example, a router might be 192.168.1.1 on one subnet and 192.168.2.1 on another, bridging communication between them.

Practical Implications for Application Architecture

Understanding subnets has direct implications for backend system design. If a database server resides in a different subnet than the application server, every database query must traverse a router. Each SQL statement translates into TCP segments wrapped in IP packets that flow through the router. If that router is heavily congested—routing traffic for thousands of hosts across numerous networks—its buffers can fill, causing packet delays.

An application might experience mysterious latency spikes not because of slow queries or application logic, but because packets are queued in a router’s buffer waiting to be forwarded. These delays, often just a few milliseconds, can accumulate and degrade performance. The solution is straightforward: place the database and application in the same subnet, connected via a high-performance layer two switch rather than routing through a layer three gateway.

Routers are not designed to function as switches. While they can forward packets within the same network, dedicated switches handle this task far more efficiently. High-performance switches are engineered specifically for fast frame forwarding at layer two, making them ideal for connecting servers that communicate frequently. Using a switch eliminates unnecessary routing overhead and reduces latency.

This insight illustrates the value of understanding networking fundamentals as a software engineer. Network engineers know how to configure infrastructure, but they need application engineers to articulate requirements. By understanding that database traffic shouldn’t traverse congested routers, a backend engineer can request the appropriate network configuration—colocating servers in the same subnet with a dedicated switch—rather than accepting unexplained latency as inevitable.

Summary

The IP protocol’s building blocks—address structure, network and host portions, subnets, subnet masks, and default gateways—form the foundation of layer three communication. An IP address’s division into network and host components enables hierarchical routing: routers examine only the network portion to make forwarding decisions, dramatically reducing the search space compared to flat MAC addressing.

The subnet mask determines whether two hosts can communicate directly or require routing through a gateway. This seemingly simple distinction has profound implications for system performance and architecture. Understanding these concepts allows software engineers to make informed decisions about server placement, anticipate network bottlenecks, and communicate effectively with network engineers to optimize infrastructure for application requirements.

IP Packet Anatomy

Having established the foundational concepts of the Internet Protocol, it’s time to examine the IP packet itself—the actual data structure that carries information across networks. While backend and frontend engineers typically conceptualize an IP packet as simply “data with source and destination IP addresses,” understanding its internal structure is essential for debugging network issues, optimizing performance, and comprehending how packets traverse the internet.

Packet Structure: Header and Data

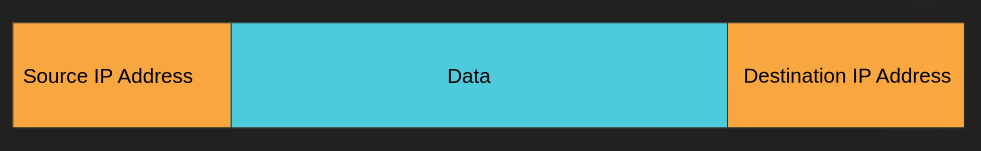

An IP packet consists of two sections: headers and data. Most application-level work focuses on the data payload, but the headers contain critical metadata that routers and hosts use to process and forward packets. The IP header consumes a minimum of 20 bytes and can expand to 60 bytes when optional fields are included. This overhead represents the “cost of doing business”—every packet must carry these headers even if the actual payload is tiny.

This header overhead has important implications. Sending a single byte of application data requires attaching at least 20 bytes of IP header, making the transmission extremely inefficient. Algorithms like Nagle’s algorithm and TCP delayed acknowledgment were designed specifically to prevent this waste by coalescing small writes into larger packets before transmission, avoiding the scenario where trivial data carries disproportionate header overhead.

The data section can theoretically contain up to 65,536 bytes (64 KB), a limit imposed by the 16-bit length field in the IP header. However, in practice, IP packets rarely approach this size. The Maximum Transmission Unit (MTU)—the largest frame size a network link can carry—is typically 1,500 bytes for standard Ethernet. To avoid fragmentation (which we’ll discuss shortly), IP packets must fit within this MTU constraint. Larger MTUs exist in specialized environments: jumbo frames support up to 9,000 bytes in certain datacenter configurations, and cloud providers like Amazon, Microsoft, and Google may use custom hardware with even larger MTUs in their internal networks, but these are exceptions rather than the norm.

The IP Header Structure

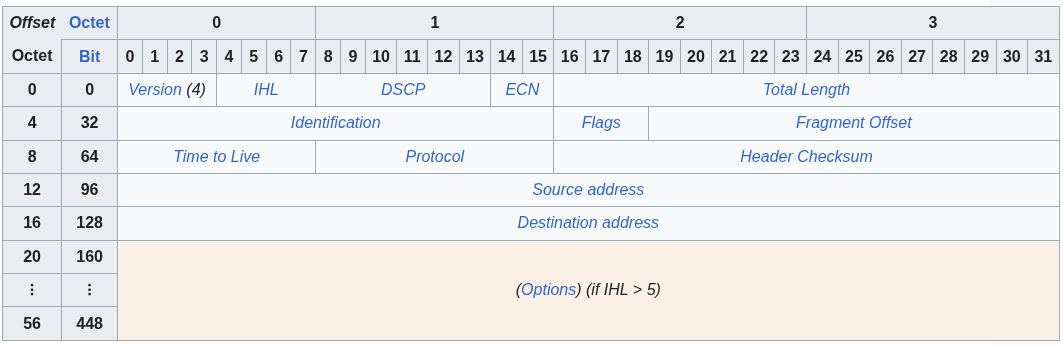

The IP header is organized into five 32-bit rows (four bytes per row), totaling 20 bytes in its standard form. Each bit position serves a specific purpose, with fields arranged to optimize parsing efficiency.

Version (4 bits): Specifies the IP protocol version—either 4 for IPv4 or 6 for IPv6. This field occupies four bits, theoretically allowing 16 possible versions (2^4), though only two are actively used. The remaining bit patterns represent wasted capacity, but this over-allocation was a precautionary design choice.

Internet Header Length (IHL, 4 bits): Indicates the header’s length in 32-bit words. The default value is 5, representing five 32-bit words (20 bytes). When optional fields are present, this value increases accordingly, allowing routers to determine where the header ends and the data begins.

Total Length (16 bits): Specifies the entire packet size in bytes, including both header and data. This 16-bit field permits packets up to 65,535 bytes, though as noted, practical constraints typically limit packets to much smaller sizes.

Identification, Flags, and Fragment Offset (32 bits total): These fields handle packet fragmentation. When an IP packet exceeds the MTU of a network link, it can be split into multiple fragments, each transmitted in a separate frame. The Identification field assigns a unique ID to all fragments of the original packet. The Flags field contains the “Don’t Fragment” (DF) bit, which instructs routers not to fragment the packet—if it doesn’t fit in a frame, the router drops it and sends an ICMP error back to the source. The Fragment Offset indicates where each fragment belongs in the original packet, enabling reassembly at the destination. Fragmentation is problematic and largely avoided in modern networks. Fragments can arrive out of order, requiring the receiver to buffer and reassemble them. If even one fragment is lost, the entire packet is unusable. Fragmentation also creates security vulnerabilities, as attackers can craft malicious fragmented packets to exploit reassembly logic. Modern protocols like QUIC explicitly disable IP fragmentation, preferring to handle packet sizing at higher layers.

Time to Live (TTL, 8 bits): Perhaps one of the most elegant solutions in network design, the TTL field prevents packets from circulating indefinitely. When a packet is sent, the source sets the TTL to a reasonable value (commonly 64 or 128). Each router that forwards the packet decrements the TTL by one. If the TTL reaches zero, the router discards the packet and sends an ICMP “Time Exceeded” message back to the source. This mechanism solves a fundamental problem: IP routing is stateless, meaning routers don’t track which packets they’ve seen. Without TTL, routing loops—where a packet bounces between routers indefinitely—would congest the network with zombie packets. TTL effectively embeds state into the packet itself rather than storing it on routers, a clever design pattern that trades a small header field for the elimination of per-packet state on every router. The traceroute (or tracert on Windows) utility exploits TTL to map network paths. It sends packets with incrementally increasing TTL values: the first packet has TTL=1 and elicits a “Time Exceeded” response from the first router, revealing that router’s IP address. The second packet has TTL=2, reaching the second router before expiring, and so on. By collecting these responses, traceroute constructs the complete path to the destination. Some routers and firewalls disable ICMP responses, causing gaps (displayed as * * *) in the trace.

Protocol (8 bits): Identifies the protocol encapsulated in the packet’s data section—typically TCP (6), UDP (17), or ICMP (1). This field allows routers to make rapid decisions about packet handling without parsing the entire payload. For example, a router configured to block ICMP traffic can check this single byte and drop the packet immediately rather than examining the data. This design pattern—using a small metadata field to avoid parsing large data sections—recurs throughout networking and software engineering. It trades a few bits of overhead for substantial performance gains. The 8-bit protocol field supports up to 255 distinct protocol types, with room for both standard protocols and experimental ones.

Source IP Address (32 bits): Indicates where the packet originated. This address is critical for routing responses back to the sender.

Destination IP Address (32 bits): Specifies the packet’s intended recipient. Together with the source address, these fields constitute the most important header metadata, as they enable routing across the internet.

IP Spoofing and Source Address Validation: While technically possible to forge source IP addresses—a practice called “IP spoofing”—practical constraints limit its utility. A sender can construct a packet with an arbitrary source address, but when it reaches the first major router (typically the sender’s ISP), that router can validate whether the source address matches the customer’s assigned address space. Most ISPs implement egress filtering to block spoofed packets, preventing abuse. Even if a spoofed packet evades filtering, the response traffic will be routed to the spoofed address rather than the actual sender, making spoofing ineffective for bidirectional communication. IP spoofing is primarily useful in specific attack scenarios like DDoS reflection attacks, where attackers don’t care about receiving responses.

Explicit Congestion Notification (ECN, 2 bits): A relatively modern addition to the IP header, ECN enables routers to signal network congestion without dropping packets (congestion is when packets starts to drop). Traditionally, when a router’s buffer fills up due to heavy traffic, it simply discards incoming packets. The sender detects this loss through timeouts and retransmissions, eventually inferring congestion and reducing its transmission rate. ECN provides a more efficient mechanism. When a router’s buffer approaches capacity, instead of dropping packets, the router sets the ECN bits to indicate impending congestion. The packet continues to its destination, where the receiver notices the ECN marking and informs the sender (typically through TCP acknowledgments) that congestion is occurring. The sender can then reduce its transmission rate proactively, avoiding actual packet loss. This design is elegant in its simplicity: two bits of metadata enable congestion signaling without packet drops, timeouts, or retransmissions. The receiver echoes the ECN notification back to the sender, ensuring both parties become aware of congestion. This represents a significant efficiency improvement over implicit congestion detection through packet loss.

Packet Size and Efficiency Considerations

The relationship between header overhead and data payload reveals important efficiency trade-offs. A 20-byte header represents substantial overhead for small payloads: sending 10 bytes of data requires at least 30 bytes on the wire (20-byte IP header plus 10-byte payload), yielding only 33% efficiency. As payload sizes increase, efficiency improves: a 1,480-byte payload with a 20-byte header achieves 98.7% efficiency.

This is why protocols like TCP implement mechanisms to batch data. Nagle’s algorithm, for instance, delays transmission of small segments until enough data accumulates to justify the header overhead. Similarly, applications benefit from sending larger messages when possible rather than many tiny ones.

However, very large packets introduce different problems. While the 16-bit length field theoretically permits 64 KB packets, the MTU typically caps practical packet sizes at 1,500 bytes. Packets exceeding the MTU must either be fragmented (with all its attendant problems) or rejected if the Don’t Fragment flag is set. Modern network stacks avoid fragmentation by performing path MTU discovery, where the sender determines the smallest MTU along the path to the destination and sizes packets accordingly.

An intriguing question is whether cloud providers with tightly controlled internal networks might use very large MTUs—approaching the theoretical 65,536-byte limit—to optimize traffic within their datacenters. With custom hardware, high-bandwidth interconnects, and no concern for internet-wide compatibility, such optimizations could reduce per-packet overhead significantly. However, very large packets introduce latency concerns: transmitting a 64 KB packet at 10 Gbps takes roughly 51 microseconds, during which the network interface is busy and cannot process other packets. This head-of-line blocking might offset efficiency gains. The optimal MTU represents a balance between overhead reduction and latency control.

Summary

The IP packet is a carefully engineered data structure optimized for efficient routing and processing. Its 20-byte header contains just enough information for routers to make forwarding decisions without examining payload data. Fields like TTL prevent routing loops through simple per-hop decrements. ECN enables congestion signaling without packet loss. The protocol field allows rapid classification of packet contents.

Understanding packet anatomy illuminates design principles applicable to software engineering broadly: the value of metadata for fast decision-making, the trade-offs between state in packets versus state on intermediaries, and the importance of efficiency when resources are constrained. Early internet designers worked within severe resource limitations, producing elegant solutions that modern engineers—blessed with abundant memory and bandwidth—often overlook.

Fragmentation remains a cautionary tale: while the IP header provides mechanisms to split large packets across multiple frames, the complexity and failure modes of fragmentation have led modern protocols to avoid it. The lesson extends beyond networking: features that seem useful in theory can prove problematic in practice, and sometimes the best solution is to constrain behavior (setting the Don’t Fragment bit) rather than handle all possible cases.

The IP packet represents decades of refinement in distributed systems design, and studying its structure provides insights that transcend networking, informing how we build any system where efficiency, reliability, and simplicity must coexist.
